Kodak Disc Camera's:

Kodak Disc Cameras, In an effort to capitalise further on the advances in film technology and the popularity of the quick-loading Instamatic cameras, Kodak introduced the Disc format in 1982, but the ultra-small 8x10mm negatives were never very successful in the hands of "Joe Public" and his family and Kodak stopped producing cameras in this format in 1990. According to one source, Kodak produced 8 million disc cameras during the first year of production. As a point of interest, most, if not all, Kodak Disc cameras were fitted with aspheric lenses, the mass production of which Kodak had developed.
Film for this format was withdrawn from production by Kodak in 1998, it is no longer manufactured by anyone.
Most, if not all, Kodak Disc cameras have a four-character "CAMEROSITY" date-code, usually on the inside of the film door, near the hinge.



Kodak Disc 470, USA  1986-1990   YEIO = 10-04-1986

Kodak Disc 2000, USA export only 1982-1984

The Kodak 470 is a special camera not because of its features, but because of the complete lack of reference to this camera by Kodak. There are many timelines and model information available on Kodak cameras - by Kodak itself and numerous Kodak collectors. There are also numerous references to all the Kodak disc models in various books and magazines. But nowhere, will you able to find reference to the existence of this model.  The Kodak disc 470 camera was a premium model. Kodak marketed premium models for groups that used these cameras as sales incentives, or were provided as prizes and therefore, had no suggested list price. This camera was introduced in January 1986 and discontinued in September 1990.  The camera itself is identical to the Kodak disc 3600 camera and Challenger model. The only difference is the labeling/identification of the 470 model.

Kodak Disc 2000, Powered by a replaceable 9v battery, this camera differs from the rest of the range in that the flash is manually selectable, by the control under the lens, rather than automatic. Available in two variations, with black or silver faceplates. lens: 12.5mm, f/2.8 shutter: 2 speedfilm type: HR Disc  picture size: 8 x 10 mm

Kodak Disc 3000, USA 1983-1984

Kodak Disc 3100 Red, USA 1984-1985 made for j.c. Penney photo Outfit

Kodak Disc 3000, Using a replaceable 9v battery, this camera is otherwise similar in specification to the Disc 4000

Kodak Disc 3100, This camera features a rather different copper-coloured faceplate, behind which lies a snapshot camera with electronic flash, all powered by a PP3 battery. A variation of this model with a red front panel, was sold by J.C. Penney. Although the published marketing dates for the 3100 model are 1984-87, the J.C. Penney had this model before it was released for general sale.

Kodak Disc 3100, USA 1984-1985

Kodak Disc 3500, USA export only    1983-1984

Kodak Disc 3100, This camera features a rather different copper-coloured faceplate, behind which lies a snapshot camera with electronic flash, all powered by a PP3 battery. A variation of this model with a red front panel, was sold by J.C. Penney. Although the published marketing dates for the 3100 model are 1984-87, the J.C. Penney had this model before it was released for general sale.

Kodak Disc 3600, USA 1986-1988

Kodak Disc 3600, A fold up cover protects the lens on this model which is powered by two AA size batteries.

Kodak Disc 3500, Powered by a 9v. PP3 battery, the sliding lens cover also closes the viewfinder.





Kodak Disc 4000 Photokina, USA 1982,   1 of 1000 examples

Kodak Disc 4000 Photokia edition , Automatic low light detection activates the flash on this integral lithium battery powered model. The lens and viewfinder are covered by a sliding cover, which doubles as a shutter interlock. This model was special for the Photokina and there are about 1000 examples made

Kodak Disc 4000, USA 1982-1984.   (Transparent model )

Kodak Disc 4000 transparent,  Automatic low light detection activates the flash on this integral lithium battery powered model. The lens and viewfinder are covered by a sliding cover, which doubles as a shutter interlock.  As a store demo/sales promotion, Kodak produced -- like many other camera manufacturers -- a transparent model for store display.  This model is only partially transparent, but is probably perfectly functioning.

Kodak Disc 4000, 1982-1984

Kodak Disc 4000, Automatic low light detection activates the flash on this integral lithium battery powered model. The lens and viewfinder are covered by a sliding cover, which doubles as a shutter interlock.

Kodak Disc 4100, USA 1984-1987

Kodak Disc 6000, USA 1982-1984

The kodak Disc 4100, is is an updated version of the Disc 4000, the bottom tier of Kodak's disc series and was introduced in 1984 and discontinued in 1987. According to Kodak's website, there's no difference in the specifications between the old and new models. The lens consisted of 4 glass elements with a focal length of 12.5mm at f/2.8, offering a 58° angle of view. The shutter speeds are 1/200 sec f/6 in daylight and 1/100 sec f/2.8 with flash. Other features are automatic film advance, sliding close-up lens, automatic exposure, built in flash, built in twin 3V Lithium battery set, permanent front cover attached, and it came with a handy carry strap.

The Kodak Disc 6000 was manufactured between 1982 and 1984 and retailed for between $57 and $143. They have the unique distinction of being the only cameras at the time that Kodak manufactured for use with the HR Discs instead of film. The Disc system was almost entirely automated, making the loading of film and picture-taking itself much simpler for the consumer. Even the battery was not user-serviceable; the 3v lithium battery had to be replaced by Kodak but did last for an extremely long time. The lens consisted of 4 glass elements with a focal length of 12.5mm at f/2.8, offering a 58° angle of view. The shutter speeds are 1/200 sec f/6 in daylight and 1/100 sec f/2.8 with flash.

Kodak Disc 6100, USA 1984-1987

Kodak Disc 8000, USA 1982-1984

Kodak Disc 6100, Visually very similar to the Disc 4100, but with the addition of a close-up lens for 1.5-4ft. When this is switched in, the brightline framing marks in the viewfinder move to compensate for parallax correction, and a yellow filter covers the viewfinder as a reminder. This camera was also issued as a special edition as the Medalist II.

Kodak Disc 8000, Probably the "de-luxe" model of the range, this camera has several features worthy of note. The fold-up cover, which is fitted with an electronic alarm clock, opens to reveal a gold coloured faceplate. The control adjacent to the lens sets the self-timer in one position, but in the other, engages a 3fps autowinder.
Below the lens is the slider control to introduce the close-up lens, for 1.5-4 feet, which also activates parallax correction in the viewfinder. The flashgun output also appears to be controlled by this slider, which, when in the "normal" position, has a range out to 18 feet. To facilitate the use of the self timer, the cover folds through 270 degrees to act as a table stand.

Kodak Challenger Disc, USA 1986-1990, premium version of 3600

Kodak Medalist 1, USA same as 4100

Kodak Challenger disc, A 'premium' version of the Disc 3600 and not as easy to find.  lens: 15mm, f/4shutter: 1/300, film type: VR Disc, picture size: 8 x 10

Kodak Medalist I Disc, Apparently identical in all but name to the Disc 4100, this camera was a special edition model

Kodak Medalist 2, USA 1982 special edition of 6100. 1986-1987

Kodak Medalist tele disc, USA 1986-1990 special edition of Tele disc

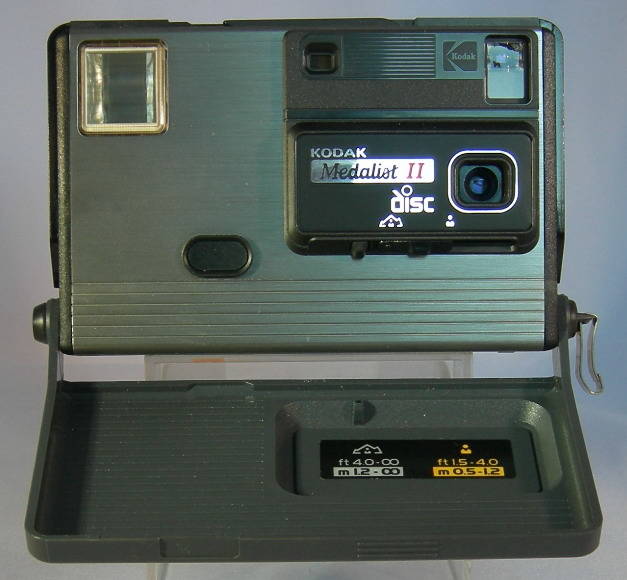

Kodak Medalist II Disc, A special-edition model of the Disc 6100. This camera was produced from 1986 to 1987 and used the VR disk film format. The lens consisted of 4 glass elements with a focal length of 12.5mm at f/2.8, offering a 58° angle of view. The shutter speeds are 1/200 sec f/6 in daylight and 1/100 sec f/2.8 with flash. Other features are automatic film advance, sliding close-up lens, automatic exposure, built in flash, built in twin 3V Lithium battery set, permanent front cover attached, and it came with a handy carry strap.

Kodak Medalist Tele,I dentical in every way to the Tele Disc, except that it came in a black & gray body.  I guess Kodak thought that a flashy name would increase sales.  After all, by 1986 they were competing with hundred of disc cameras from dozens of other companies.

Kodak Tele Challenger disc USA 1985-1986 premium version of Tele Disc

Kodak Tele Challenger disc, A "premium" edition of the tele Disc camera.

Kodak Tele disc USA 1985-1988

Kodak Tele Disc, A twin lens camera, the telephoto lens is activated by extending the flashgun! A fold up cover protects the lens on this model which is powered by two AA size batteries. This camera was also available in a cream-coloured finish  which is very similar to the tele Challenger.
